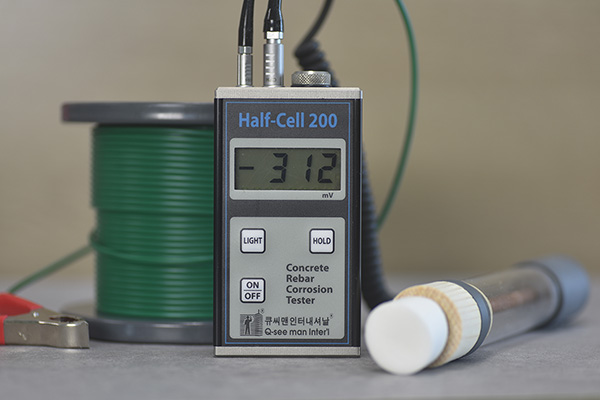

Click to enlarge

Features
  Direct reading of electrical activity by Copper Sulphate Electrode
  Measuring Range: £­2,000mV ¡­ £«2,000mV
  Display Hold Function
  Automatic Power off to save battery
  Rugged aluminum case and carrying pouch
  100 hours operation by 2 x Alkaline AA battery
  Low Battery status display
  Conforms to ASTM C876

Corrosion of reinforcing steel is encountered in variety of reinforced concrete structures.
Corrosion ultimately results in a reduction in the cross section of the reinforcement and spalling of the concrete.  In well-cured concrete, the steel reinforcing bars are protected by the Alkaline composition of the surrounding concrete. As time passes, the Alkaline protection can be eroded either by carbonation or by chlorides.  Once the Alkaline protection is removed, in the presence of oxygen and moisture, the steel is liable to corrode.
Consequently, it is important to detect corrosion at an early stage of its development.
Furthemore, when repairing a reinforced concrete structure, it is important to locate and repair all areas of corroding reinforcement. Half-Cell potential technique is an established and reliable method of measuring and monitoring the condition of reinforcing steel in concrete.
Half-Cell 200 Concrete Rebar Corrosion Tester is used to locate corroding reinforcement without disrupting the concrete cover to the reinforcing steel.  Half-Cell 200 is supplied with  copper sulphate electrode, carrying pouch, 30 meter length extension cable, aluminium bag and instruction manual.

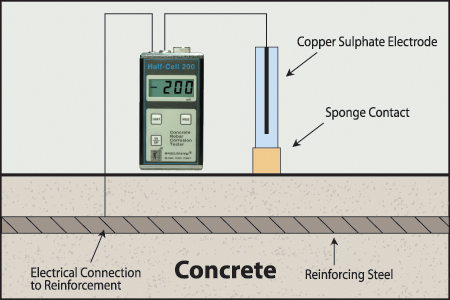

Half-Cell 200 electrical circuit for measuring half-cell potentials

Half-Cell 200 Kit
  Half-Cell 200 main body
  Half-Cell Electrode(CSE)
  Sponge Insert
  Carrying Pouch
  30m extension cable
  Aluminium bag
  Instruction manual

Specifications of Half-Cell 200
  Measuring Method: Half-Cell potential method using Copper Sulphate Electrode
  Measuring Range: £­2,000mV ¡­ £«2,000mV
  Display: 3 1/2 digit LCD
  Resolution: 1mV
  Display Stability: ¡¾1mV
  Input Impedance: 100M§Ù
  Automatic Shut-Off: After 5 minutes without use
  Hold Function: Hold the display
  Display Function: Low Battery and Hold status
  Power: 2 x AA Alkaline Battery
  Battery Life: About 100 hours
  Operating Temperature: -10¡É~50¡É
  Size: 115¡¿63¡¿33mm
  Weight: 330 grams (main body including battery)
  Warranty: one year

¢Ñ Specifications are subject to change without notice
    (HC-200 Brochure, HC-200 Instruction Manual, HC-2020 Instruction Guide)
